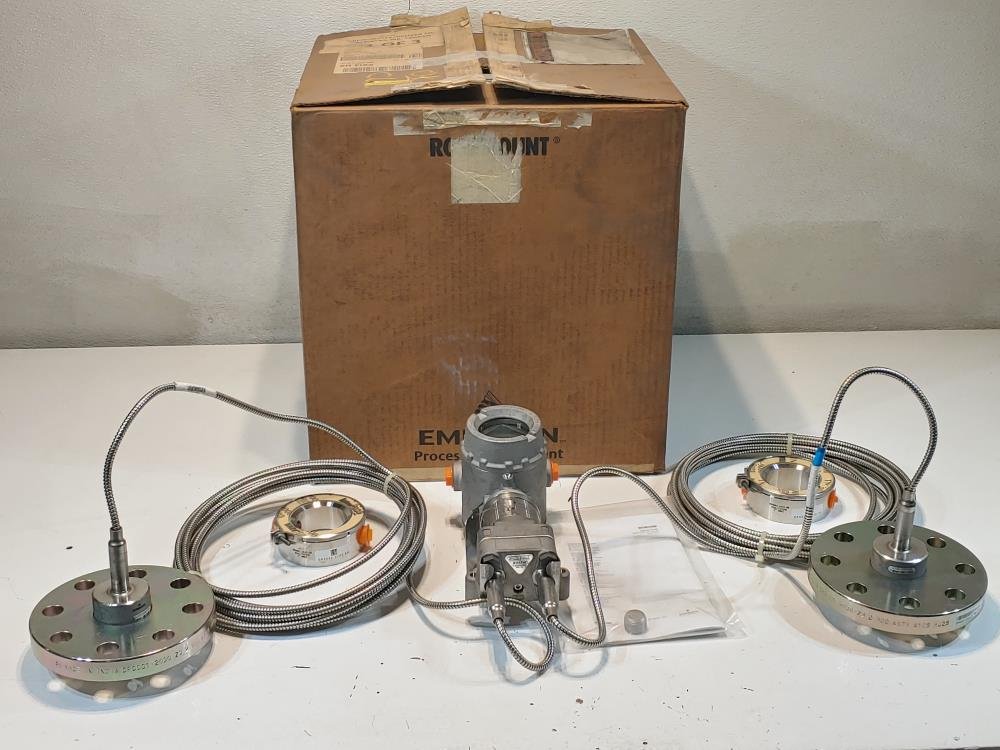

Rosemount 3051S2CD2A2B12A1JE5M5P1Q8 Pressure Transmitter w/ 2″ 300# Diaphragm

Buy Rosemount 3051S2CD2A2B12A1JE5M5P1Q8 Pressure Transmitter w/ 2″ 300# Diaphragm

The Rosemount 3051S2CD transmitter is engineered with Coplanar™ differential pressure measurement technology and a 2-inch 300-lb diaphragm seal to protect the sensing element from corrosive, viscous, or high-temperature process media. It operates with a 10.5–42.4 VDC power supply and delivers a reliable 4–20 mA output with HART communication, enabling seamless integration with modern process control systems. This configuration offers a calibration range of 0–51 inches of water column (inH₂O) and supports a maximum working pressure of 740 PSI (51.1 bar), ensuring dependable operation in demanding industrial environments.

Key Features

• High-accuracy differential pressure measurement

• Advanced SuperModule™ sensor technology

• 2″ 300# diaphragm seal for harsh process applications

• 4–20 mA output with HART communication

• Rugged industrial housing with long-term stability

• Coplanar technology for flexible installation

Typical Applications

• Differential pressure flow measurement

• Tank level monitoring systems

• Oil and gas processing plants

• Chemical and petrochemical industries

• Power generation and industrial automation

Technical Specifications

• Product Name: Rosemount Pressure Transmitter

• Model: 3051S2CD2A2B12A1JE5M5P1Q8

• Type: Differential Pressure Transmitter

• Calibration Range: 0 – 51 inH₂O

• Output: 4–20 mA with HART protocol

• Power Supply: 10.5 – 42.4 VDC

• Maximum Working Pressure: 740 PSI / 51.1 Bar

• Process Connection: 1/2″ ports

• Diaphragm: 2″ 300# flange rating

📩 Contact us for pricing, availability, and delivery information.
