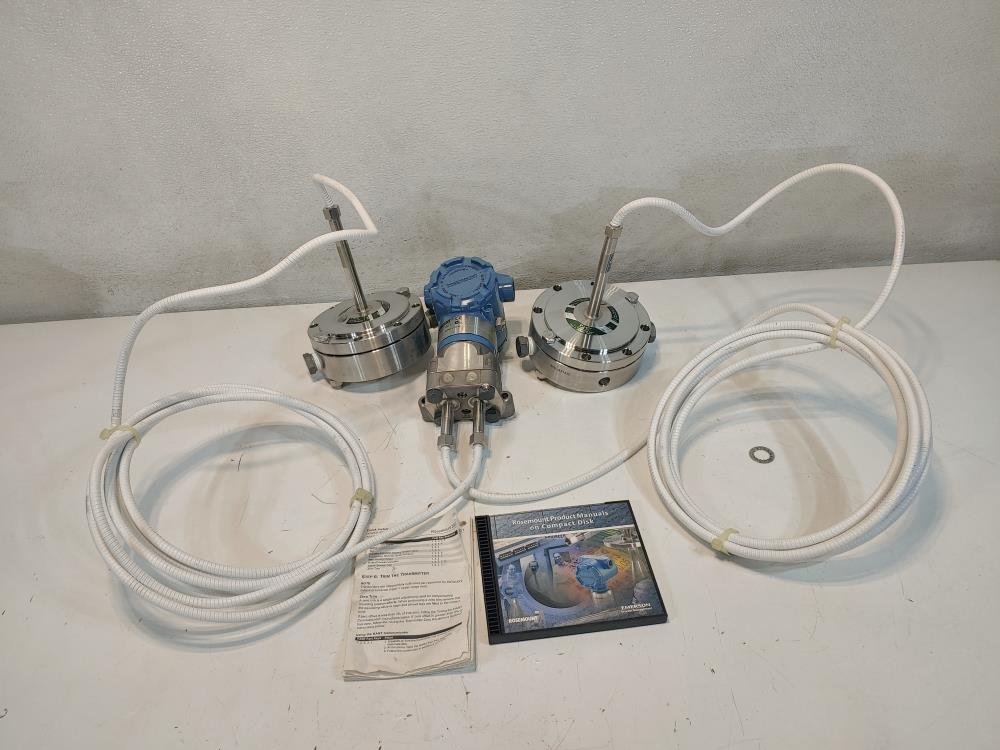

Rosemount 3051 Smart Family Hart Pressure Transmitter w/ 750 PSIG Diaphragm

Buy Rosemount 3051 Smart Family HART Pressure Transmitter w/ 750 PSIG Diaphragm

This configuration features a 316L stainless-steel diaphragm with a maximum working pressure of 750 PSIG, ensuring reliable performance in demanding process conditions. The transmitter provides 4–20 mA analog output with HART communication and operates with a 10.5–55 VDC power supply, enabling seamless integration with modern control and asset management systems. With a calibration range of 0 to 250 inH₂O, the Rosemount 3051 transmitter delivers dependable pressure measurement and long-term operational stability.

Key Features

• High-accuracy differential pressure measurement

• 4–20 mA output with HART digital communication

• 316L stainless-steel diaphragm seal for process protection

• Maximum working pressure up to 750 PSIG

• Proven Coplanar™ transmitter design

• Rugged industrial housing for harsh environments

Typical Applications

• Differential pressure flow measurement

• Tank level monitoring

• Oil & gas processing facilities

• Chemical and petrochemical plants

• Power generation and industrial automation

Technical Specifications

• Product Name: Rosemount Smart HART Pressure Transmitter

• Series: 3051 Smart Family

• Type: Differential Pressure Transmitter with Diaphragm

• Maximum Working Pressure: 750 PSIG

• Calibration Range: 0 – 250 inH₂O

• Output Signal: 4–20 mA with HART protocol

• Power Supply: 10.5 – 55 VDC

• Diaphragm Material: 316L Stainless Steel

📩 Contact us for pricing, availability, and delivery information.
