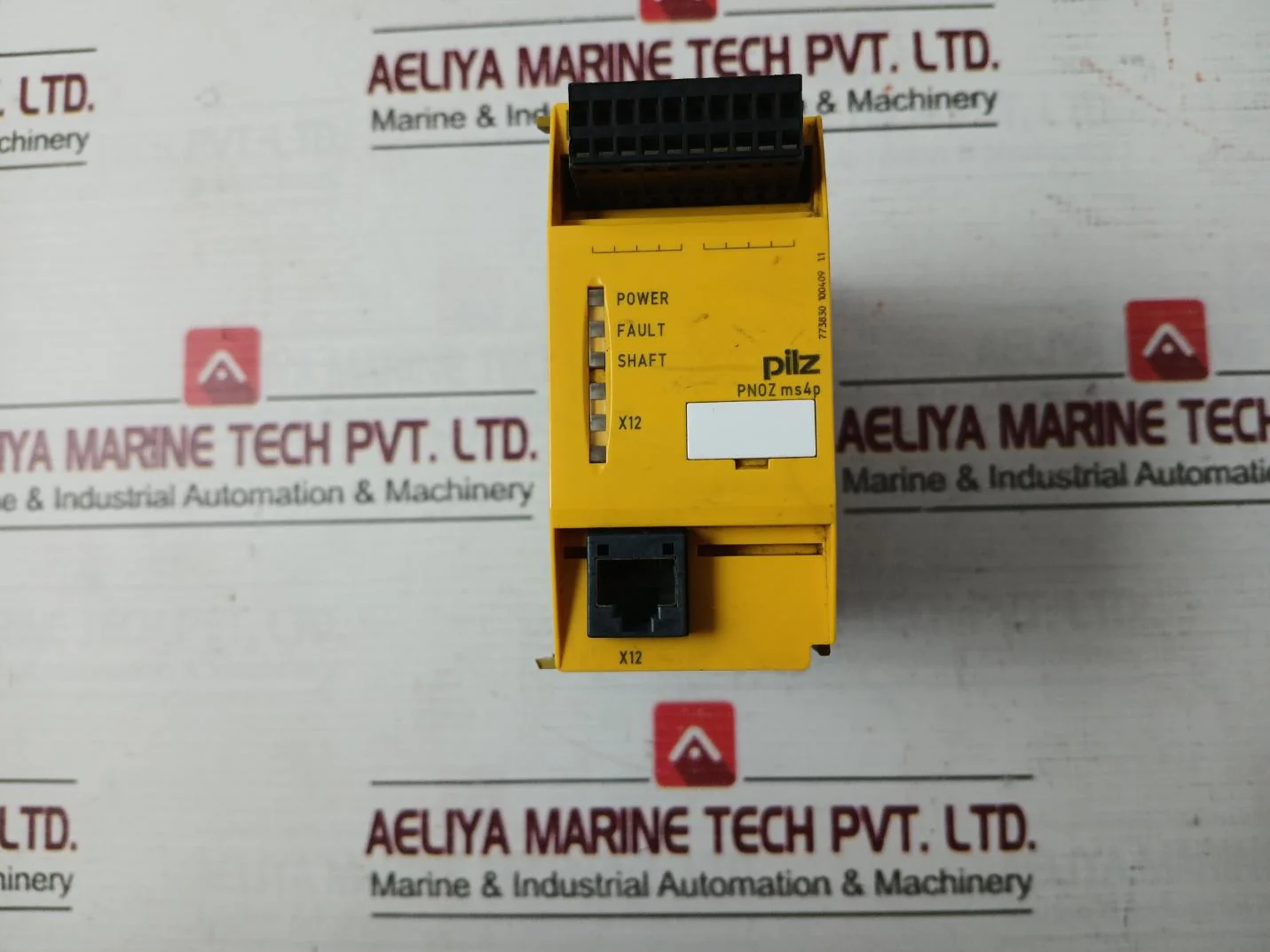

Pilz Pnoz Ms4P Configurable Safety Controller A010321

Buy Pilz PNOZ MS4P Configurable Safety Controller A010321

Designed for sophisticated safety applications, the Pilz Pnoz Ms4P Configurable Safety Controller A010321 delivers graphical programming that simplifies complex safety logic implementation without requiring specialized coding expertise. The controller supports simultaneous monitoring of emergency stops, safety gates, light curtains, two-hand controls, and other protective devices through configurable input channels. Four safety outputs provide independent control of multiple safety zones or devices, while built-in diagnostic capabilities transmit detailed status information to supervisory systems. Configuration changes can be implemented through software updates rather than hardware modifications, reducing engineering time and enabling rapid adaptation to evolving safety requirements.

Key Features

• Programmable safety logic through graphical configuration software
• Multiple safety inputs accommodate diverse protective device types
• Four independent safety outputs for multi-zone machine control
• Advanced functions including muting, blanking, and restart interlocking
• Integrated diagnostics support predictive maintenance strategies
• Software-based configuration eliminates hardwired logic changes

Typical Applications

• Automated production cells with complex safety interlocking sequences
• Packaging lines requiring muting functions for material flow
• Robotic work areas with multiple safety zones and operating modes
• Press brakes with light curtain muting during material loading cycles
• Material handling systems needing coordinated multi-zone protection
• Manufacturing equipment requiring adaptive safety logic for different products

Technical Specifications

• Product Name: Pilz PNOZ MS4P Configurable Safety Controller
• Model: A010321
• Type: Programmable Safety Controller
• Safety Outputs: 4 configurable safety outputs
• Configuration: Software-based graphical programming
• Mounting: 35mm DIN rail
• Functions: Muting, restart interlocking, sequential monitoring
• Certifications: CE marked, complies with EN ISO 13849-1

📩 Contact us for pricing, availability, and delivery information.
