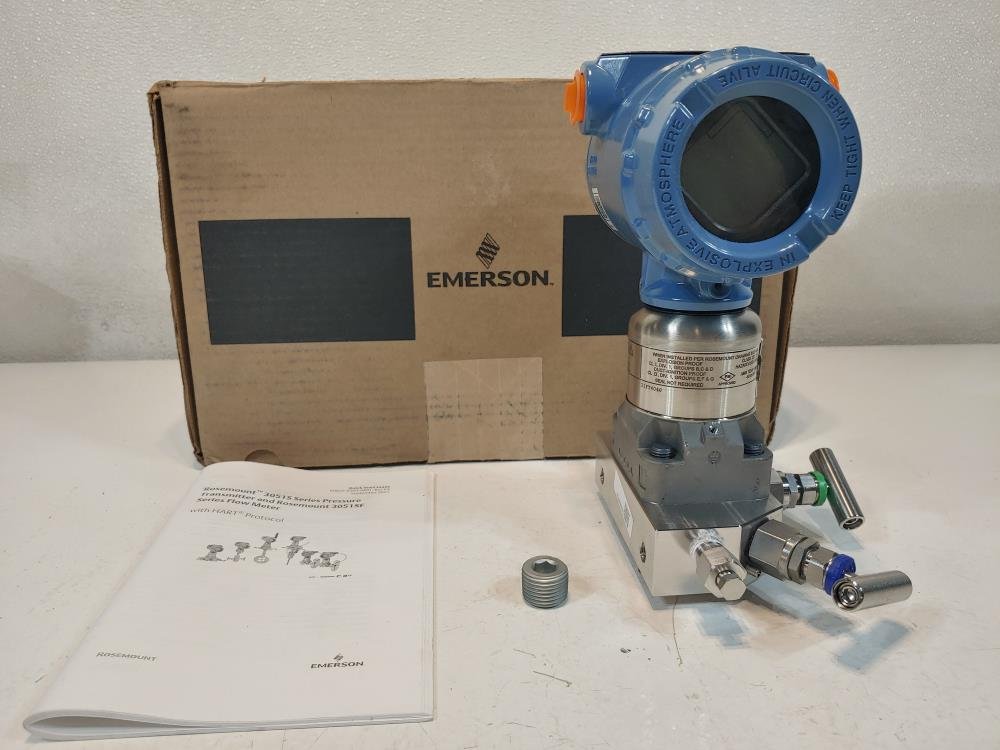

Rosemount Emerson 300S1AAD1E5M5 Pressure Transmitter w/ Manifold

Buy Rosemount Emerson 300S1AAD1E5M5 Pressure Transmitter w/ Manifold

The Rosemount 300S1AAD1E5M5 transmitter features HART communication with a 4–20 mA output, enabling seamless integration with industrial automation and asset management systems. It operates on a 10.5–42.4 VDC power supply and includes a direct-mount manifold assembly, allowing simplified installation, calibration, and maintenance of pressure measurement systems. The transmitter is equipped with 1/2-inch NPT process ports and a rugged industrial housing designed to withstand harsh operating environments commonly found in oil & gas, chemical processing, and power generation facilities.

Key Features

• Accurate industrial pressure measurement

• 4–20 mA output with HART communication

• Integrated manifold for easy installation and maintenance

• Rugged industrial housing for harsh environments

• Compatible with modern process control systems

• Reliable long-term performance and measurement stability

Typical Applications

• Oil and gas processing plants

• Chemical and petrochemical industries

• Power generation facilities

• Industrial pressure monitoring systems

• Process automation and instrumentation

Technical Specifications

• Product Name: Rosemount Pressure Transmitter with Manifold

• Housing Model: 300S1AAD1E5M5

• Transmitter Model: 3051S2CD2A2A11A1AD1E5L2M5Q4Q8Q76

• Output: 4–20 mA with HART protocol

• Power Supply: 10.5 – 42.4 VDC

• Manifold Model: 0305RC32B11L4

• Transmitter Port: 1/2 in. NPT

• Manifold Port: 1/2 in. NPT

📩 Contact us for pricing, availability, and delivery information.
