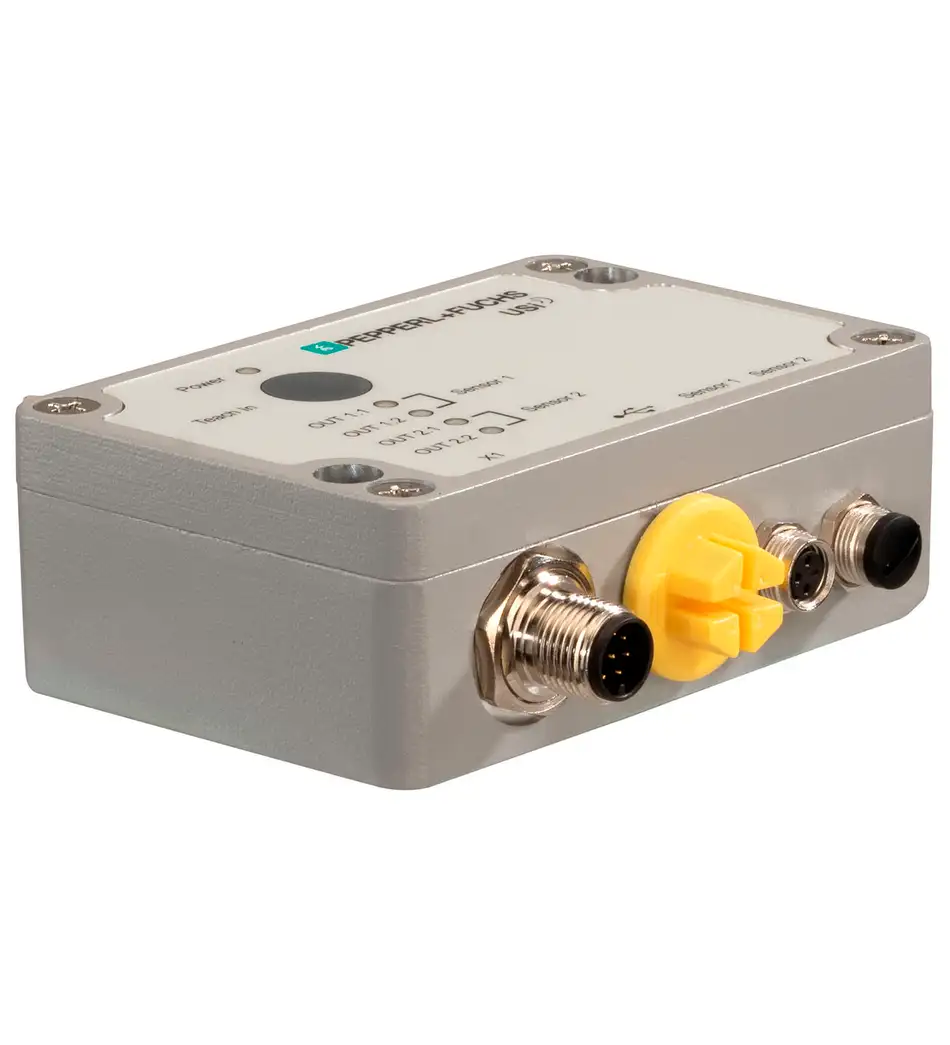

USIS-F264-4E5-V19 USi-industry evaluation unit

Buy USIS-F264-4E5-V19 USi-Industry Evaluation Unit from Pepperl+Fuchs

Engineered for advanced ultrasonic sensing applications, the USIS-F264-4E5-V19 USi-Industry Evaluation Unit from Pepperl+Fuchs offers reliable signal evaluation with flexible configuration and high accuracy. This USIS-F264-4E5-V19 USi-Industry Evaluation Unit from Pepperl+Fuchs, ultrasonic evaluation unit, and industrial ultrasonic control unit supports precise object detection within a range of up to 2500 mm. With multiple switching outputs, temperature compensation, and interference-free multi-device operation, it ensures consistent performance in automation, material handling, and process monitoring systems.

Key Features

• Evaluation unit for ultrasonic transducers with high accuracy
• Detection range up to 2500 mm
• Multiple device operation without cross-talk interference
• Adjustable sound cone for flexible sensing
• Integrated temperature compensation for stable performance
• Parameterizable inputs for flexible configuration

Typical Applications

• Industrial ultrasonic sensing systems
• Object detection and positioning
• Material handling and automation lines
• Packaging and logistics systems
• Process monitoring and control

Technical Specifications

• Product Name: USIS-F264-4E5-V19 USi-Industry Evaluation Unit
• Manufacturer: Pepperl+Fuchs
• Type: Ultrasonic evaluation/control unit
• Sensing Range: 10 mm to 2500 mm
• Operating Voltage: 9 – 30 V DC
• Outputs: 4 PNP switching outputs
• Interface: USB 2.0 for parameterization
• Protection Rating: IP65
• Operating Temperature: -30°C to +70°C
• Housing: Die-cast aluminum
• Dimensions: 98 × 77 × 35 mm
