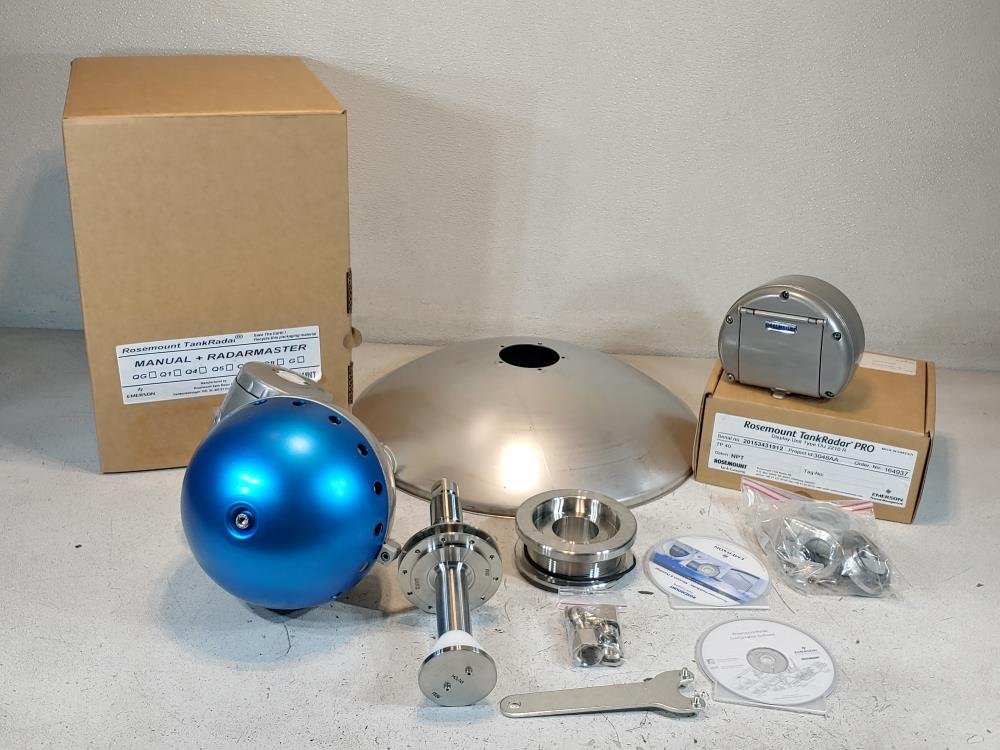

Rosemount TankRadar PRO Monitoring System w/ Display Unit

Buy Rosemount TankRadar PRO Monitoring System w/ Display Unit

The Rosemount TankRadar PRO monitoring system typically includes a radar gauge with antenna and a Rosemount 2210 remote display unit, allowing operators to monitor tank level, temperature, and calculated values such as volume and signal strength directly from the field interface. The display features a graphical LCD screen with four soft-key controls for configuration and diagnostics. The system supports multiple communication options including 4–20 mA HART, Modbus-based TRL2 bus, and Profibus, enabling seamless integration with industrial control systems and tank management software.

Key Features

• High-accuracy radar level measurement using FMCW technology

• Remote 2210 display unit with graphical LCD interface

• Multiple communication protocols including HART and fieldbus

• Rugged industrial design suitable for hazardous areas

• Real-time display of tank level, temperature, and volume data

• Configurable directly from the display unit or PC software

Typical Applications

• Oil and fuel storage terminals

• Chemical and petrochemical storage tanks

• Refinery tank gauging systems

• Bulk liquid inventory monitoring

• Industrial tank level measurement and overfill protection

Technical Specifications

• Product Name: Rosemount TankRadar PRO Monitoring System

• Display Unit: Rosemount 2210 Remote Display

• Operating Principle: 10 GHz FMCW Radar

• Output Signals: 4–20 mA, HART, TRL2 Bus, Profibus

• Power Supply: 24–240 VAC/DC

• Display: 128 × 64 graphical LCD with 4-key navigation

📩 Contact us for pricing, availability, and delivery information.
