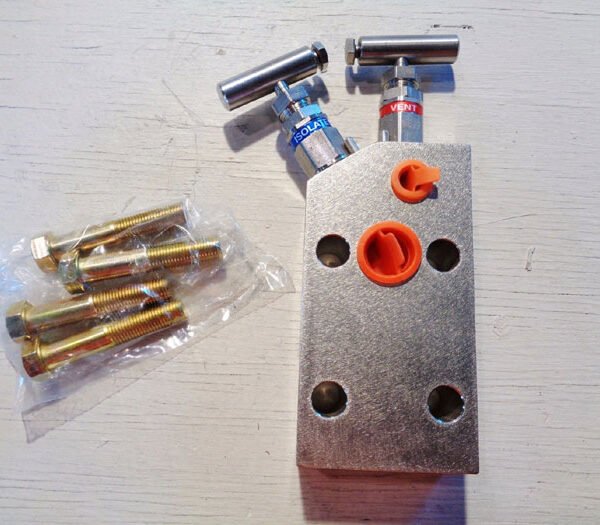

ROSEMOUNT 305 INTEGRAL MANIFOLD, PART# C305111124-0300, MOD# 0305RC22B11SG

Buy Rosemount 305 Integral Manifold C305111124-0300

The Rosemount 305 integral manifold is engineered to provide reliable instrument isolation, venting, and pressure equalization for differential and static pressure transmitters. The 0305RC22B11SG manifold features 316 stainless steel construction with Hastelloy trim, ensuring strong corrosion resistance and durability in harsh process conditions. With 1/2″ FNPT × 1/4″ FNPT connections and a maximum working pressure up to 6092 PSI at 200°F, this Rosemount manifold valve is widely used in oil & gas, petrochemical, and industrial automation applications where precise pressure measurement and system safety are critical.

Key Features

• Direct mounting to Rosemount Coplanar transmitters

• Reduces potential leak points compared to traditional flange setups

• Provides isolation, venting, and equalization functions

• Rugged 316 stainless steel body with corrosion-resistant trim

• Compact design for easy installation and maintenance

• Designed for demanding industrial environments

Typical Applications

• Differential pressure transmitter installations

• Process pressure monitoring systems

• Oil & gas production and refining

• Chemical and petrochemical plants

• Industrial process automation

Technical Specifications

• Product Name: Rosemount Integral Manifold

• Model: 0305RC22B11SG

• Part Number: C305111124-0300

• Manifold Type: Integral Instrument Manifold

• Body Material: 316 Stainless Steel

• Trim Material: Hastelloy

• Process Connections: 1/2″ FNPT × 1/4″ FNPT

• Maximum Working Pressure: 6092 PSI @ 200°F

• Temperature Rating: Up to 400°F depending on configuration

📩 Contact us for pricing, availability, and delivery information.
