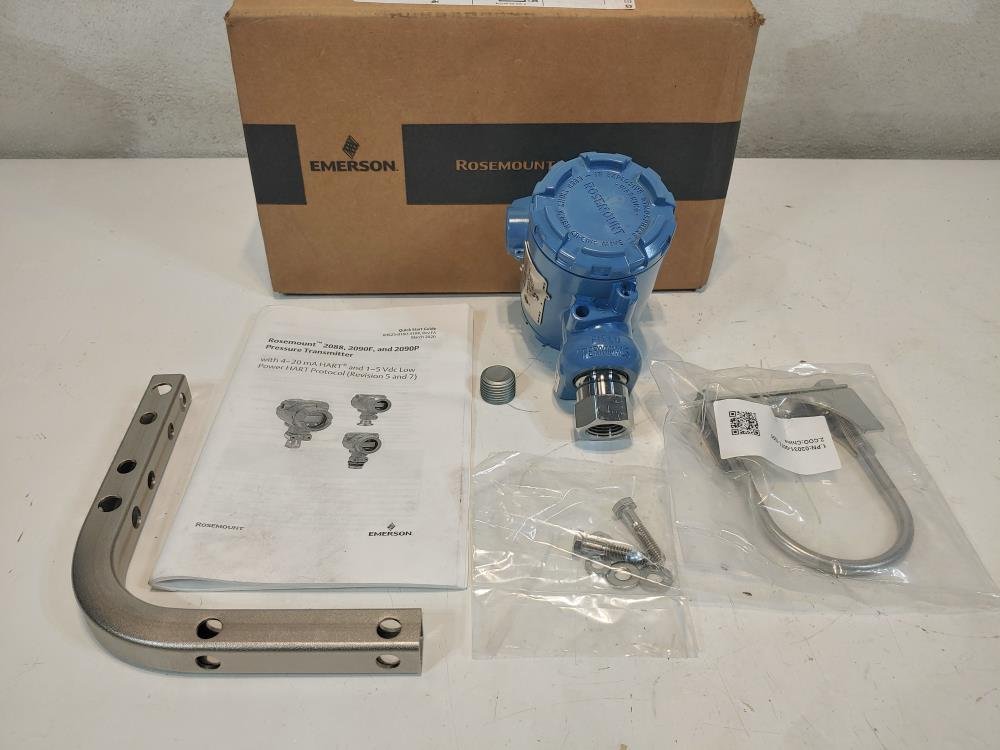

Rosemount 2088 Pressure Transmitter 2088G3S22A1B4E5HR5

Buy Rosemount 2088 Pressure Transmitter 2088G3S22A1B4E5HR5

This Rosemount 2088 pressure transmitter supports 4–20 mA analog output with HART communication, allowing seamless integration with modern control and monitoring systems. The 2088G3S22A1B4E5HR5 transmitter features 316L stainless-steel wetted parts, a calibration range of 0 to 800 PSI, and operates with a 10.5–42.4 VDC power supply, delivering dependable pressure measurement and long-term stability in demanding industrial environments.

Key Features

• High-accuracy gauge pressure measurement

• 4–20 mA output with HART communication

• Durable 316L stainless-steel process wetted parts

• Compact and rugged industrial design

• Easy installation with stainless-steel mounting bracket

• Built-in diagnostics for reliable operation

Typical Applications

• Process pressure monitoring

• Oil & gas production systems

• Chemical and petrochemical plants

• Water and wastewater treatment

• Industrial automation and control systems

Technical Specifications

• Product Name: Rosemount Pressure Transmitter

• Model: 2088G3S22A1B4E5HR5

• Type: Gauge Pressure Transmitter

• Calibration Range: 0 – 800 PSI

• Output Signal: 4–20 mA with HART protocol

• Power Supply: 10.5 – 42.4 VDC

• Process Connection: 1/2-14 NPT Female

• Wetted Parts Material: 316L Stainless Steel

• Maximum Working Pressure: 800 PSI / 55.2 Bar
