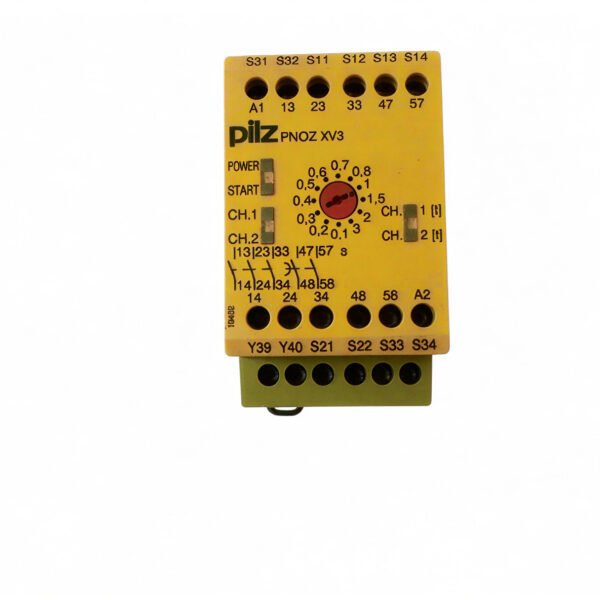

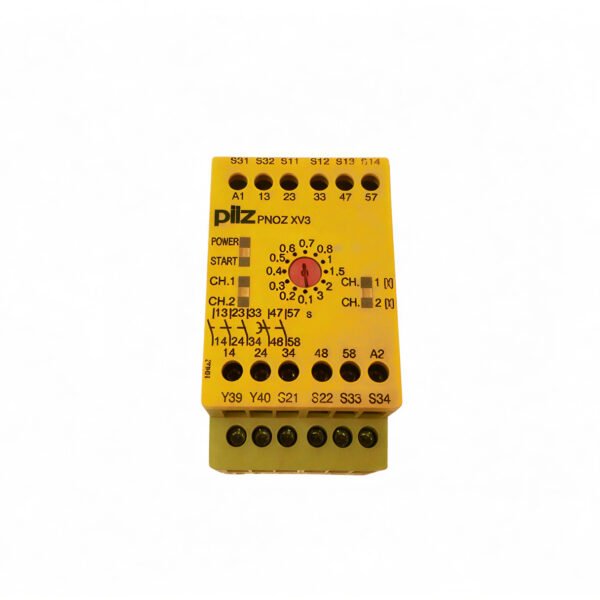

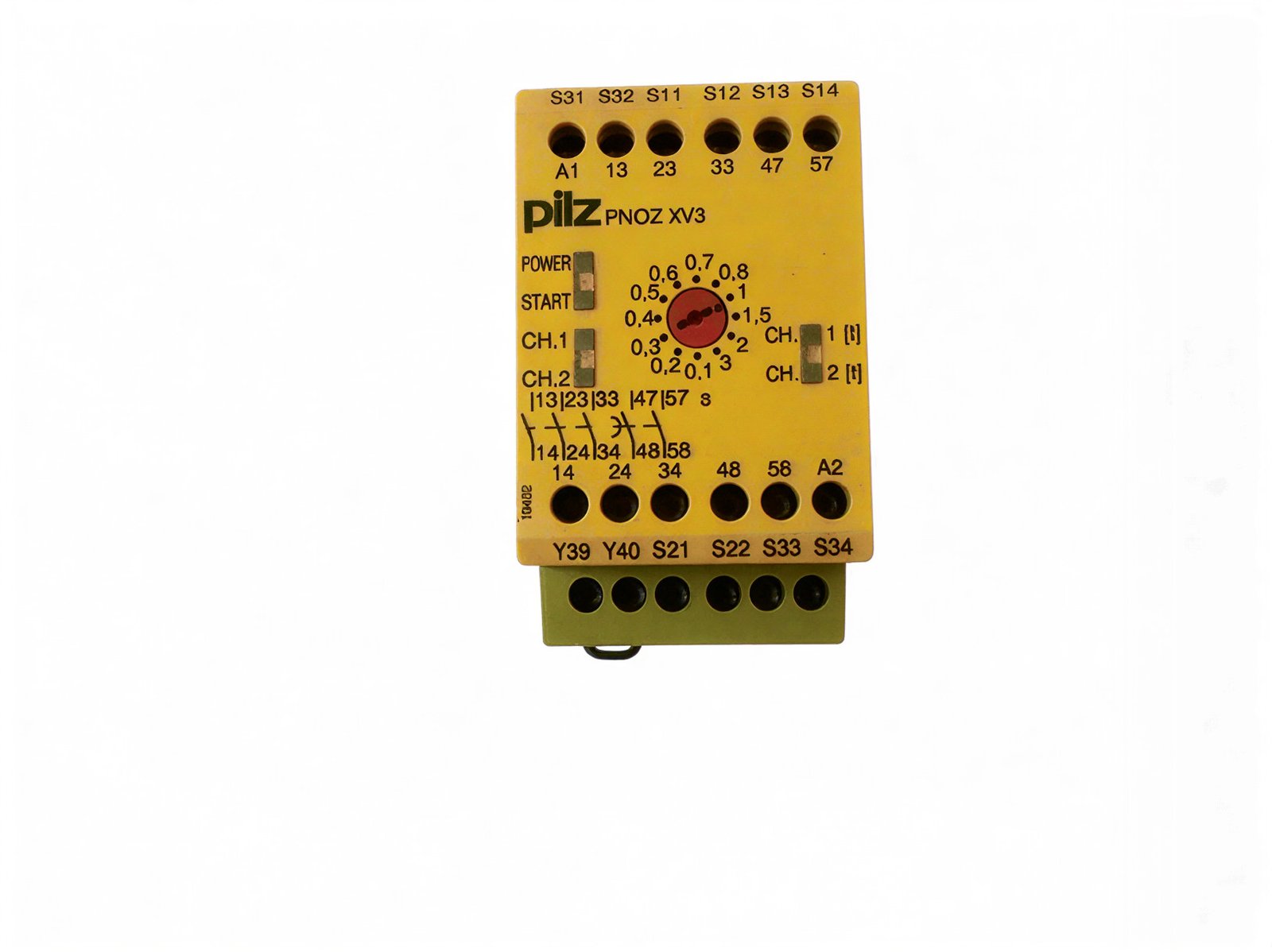

Pilz Pnoz Xv3 3/24Vdc 3N/O 2N/O T Safety Relay 774542 24,0Vdc 4,5W 230V 5,0A

Buy Pilz Pnoz Xv3 3/24Vdc 3N/O 2N/O T Safety Relay 774542 24,0Vdc 4,5W 230V 5,0A

The Pilz Pnoz Xv3 Safety Relay is built for real-world installation. Running on the standard 24,0V DC supply that factories already have in place, it connects easily into your existing control systems without requiring special power infrastructure. The 4,5W operating power keeps your energy consumption low and heat generation minimal. The 230V 5,0A auxiliary power rating gives you the capacity to handle larger safety circuits and coordinate protection across multiple zones. The combination of three normally open contacts and two open/transitional contacts creates the flexibility you need to monitor emergency stops, gate interlocks, light curtains, and sensor inputs all from one compact unit. Straightforward screw terminal connections make installation and maintenance work simple for your technicians. Whether you’re protecting individual machines or orchestrating safety across an entire facility, this relay provides the sophistication and reliability that modern manufacturing demands.

Key Features

• Professional-grade safety relay from the Pnoz Xv3 series
• Standard 24,0V DC supply voltage for seamless integration
• Three normally open (3 N/O) contacts for multiple safety functions
• Two open/transitional (2 N/O T) contacts for advanced logic control
• Ultra-low 4,5W power consumption for cost-effective operation
• 230V 5,0A auxiliary power rating for larger safety circuits
• Rapid switching response for immediate emergency protection
• Compact form factor for space-constrained control panels
• Trusted Pnoz safety technology for dependable performance
• Model 774542 ensures proper identification and ordering

Typical Applications

• Multi-circuit emergency stop systems with independent monitoring
• Complex safety gate interlocking on automated production lines
• Light curtain and safety sensor networks for personnel protection
• Coordinated safety shutdown across interconnected machinery
• High-speed manufacturing with sophisticated safety logic
• Robotic automation and collaborative workspace safety monitoring
• Advanced hydraulic and pneumatic press safety systems
• Distributed conveyor and material handling safety networks
• Pharmaceutical manufacturing equipment protection and control
• Automotive assembly line multi-function safety coordination

Technical Specifications

• Product Name: Pilz Pnoz Xv3 3/24Vdc 3N/O 2N/O T Safety Relay
• Model: Pnoz Xv3 3/24Vdc
• Model Number: 774542
• Supply Voltage: 24,0V DC
• Power Consumption: 4,5W
• Auxiliary Voltage: 230V AC
• Auxiliary Current Rating: 5,0A
• Safety Contacts: 3 N/O + 2 N/O T
• Mounting Style: DIN rail compatible
• Certification: EN 954-1 and EN 13849-1 compliant
• Operating Temperature: -25°C to +70°C

📩 Contact us for pricing, availability, and delivery information.
