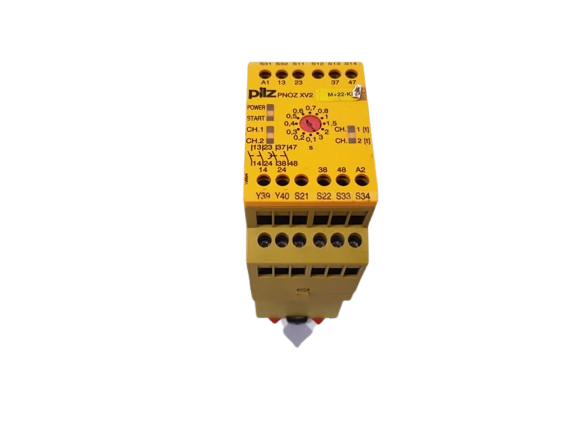

Pilz P XV2 0.5/24VDC 2N/O 2N/O Fix Safety Relay 0.5S Fest

Buy Pilz PNOZ XV2 0.5/24VDC 2N/O 2N/O Fix Safety Relay 0.5S Fest

When it comes to dependable safety switching with a fixed time delay, the Pilz Pnoz XV2 0.5/24VDC 2N/O 2N/O Fix Safety Relay 0.5S Fest stands out as a proven and cost-effective solution. It delivers four output contacts — 2 N/O enable and 2 N/O signaling — giving engineers full flexibility for both safety circuit control and system status feedback. Fully rated to Category 4 PLe and SIL 3, it is ideal for any application demanding the highest level of functional safety, from Emergency Stop systems to complex machine guarding setups.

Key Features

• Fixed 0.5-second time delay for consistent and predictable safety switching
• 2 N/O enable contacts and 2 N/O signaling contacts for versatile circuit control
• 24VDC supply voltage compatible with standard industrial control systems
• Achieves Category 4, PLe — the highest performance level per EN ISO 13849-1
• SIL 3 certified in accordance with IEC 62061 for functional safety compliance
• Slim 22.5 mm DIN rail housing for easy, space-saving panel installation
• Suitable for single and dual-channel input configurations
• Fast response time for immediate safety circuit reaction

Typical Applications

• Emergency Stop (E-Stop) monitoring on industrial machinery and production lines
• Safety gate, interlocking door, and access control circuits
• Light curtain and safety mat interface and monitoring systems
• Robotic cell perimeter guarding and conveyor safety systems
• Press machines and two-hand control safety applications
• Packaging, automotive, and heavy manufacturing equipment

Technical Specifications

• Product Name: Pilz PNOZ XV2 0.5/24VDC 2N/O 2N/O Fix Safety Relay 0.5S Fest
• Model: PNOZ XV2 0.5/24VDC 2N/O 2N/O Fix
• Type: Time-Delayed Safety Relay
• Supply Voltage: 24 VDC
• Time Delay: 0.5 seconds (fixed)
• Output Contacts: 2 N/O enable + 2 N/O signaling
• Safety Category: Category 4, PLe (EN ISO 13849-1)
• Safety Integrity Level: SIL 3 (IEC 62061)
• Mounting: 35 mm DIN rail
