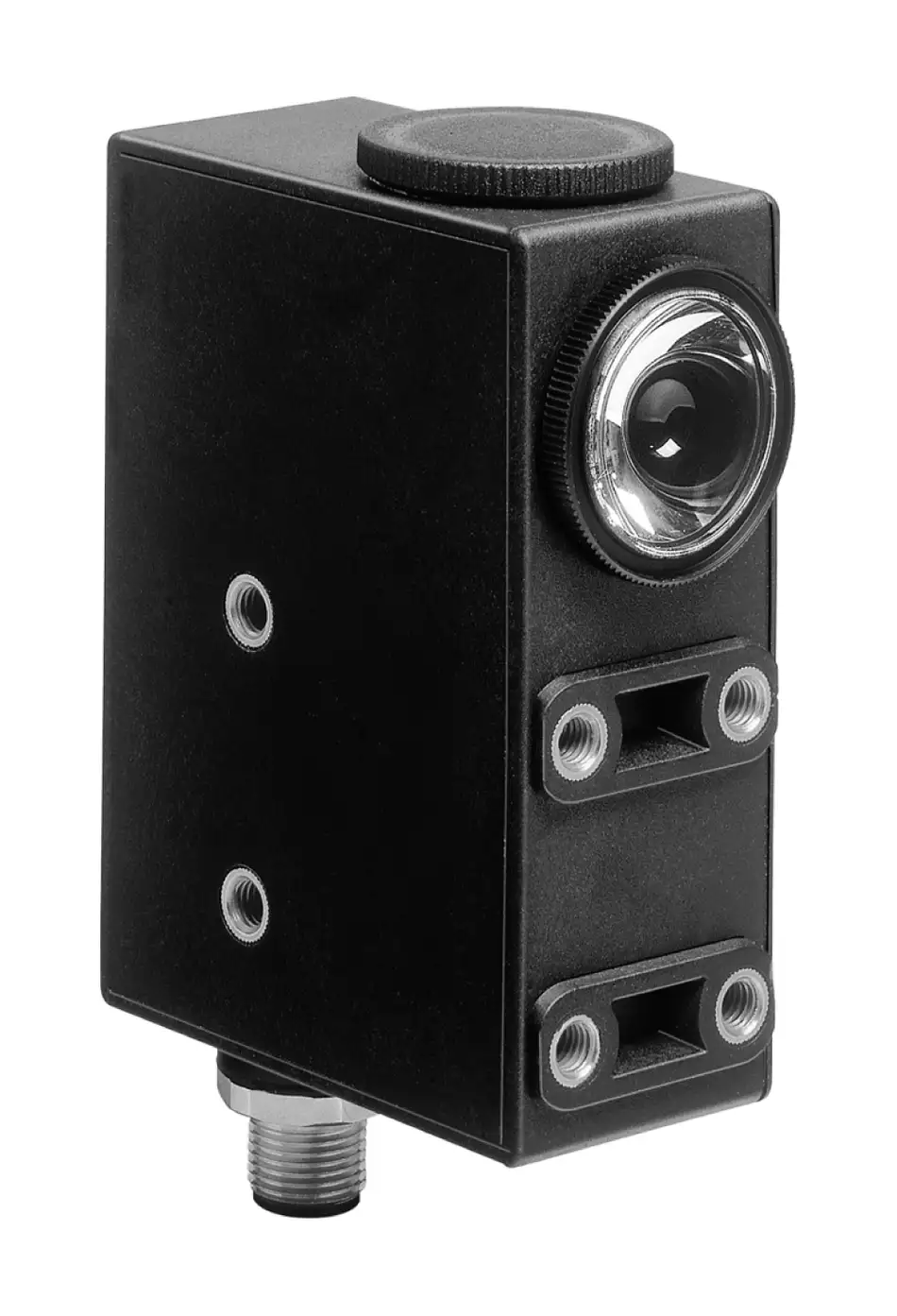

DK20-9,5/110/124 Print mark contrast sensor

Buy DK20-9,5/110/124 Print Mark Contrast Sensor from Pepperl+Fuchs

Engineered for high-speed automation, the DK20-9,5/110/124 Print Mark Contrast Sensor from Pepperl+Fuchs delivers ultra-fast detection with a response time of just 30 µs and stable performance in dynamic environments. This DK20-9,5/110/124 Print Mark Contrast Sensor from Pepperl+Fuchs, print mark sensor, and contrast detection sensor uses RGB light (red, green, blue) to ensure accurate detection of different color contrasts. With teach-in functionality and push-pull output, it provides reliable integration into packaging, labeling, and high-speed production systems.

Key Features

• High-speed print mark detection with 30 µs response time
• RGB LED light (red, green, blue) for accurate contrast detection
• Detection range of 9.5 mm ± 3 mm
• Static teach-in function for automatic threshold adjustment
• Push-pull output with short-circuit protection
• Optical system adjustable by 90° for flexible installation

Typical Applications

• Packaging and labeling machines
• Printing and marking systems
• Web edge and print mark detection
• High-speed conveyor systems
• Industrial automation and quality control

Technical Specifications

• Product Name: DK20-9,5/110/124 Print Mark Contrast Sensor
• Manufacturer: Pepperl+Fuchs
• Sensor Type: Print mark contrast sensor
• Sensing Range: 9.5 mm ± 3 mm
• Light Source: RGB LED (red, green, blue)
• Response Time: 30 µs
• Operating Voltage: 10 – 30 V DC
• Output Type: Push-pull (PNP/NPN)
• Switching Frequency: Up to 16.5 kHz
• Protection Rating: IP67
• Operating Temperature: -20°C to +60°C
• Connection: M12 connector, 5-pin
