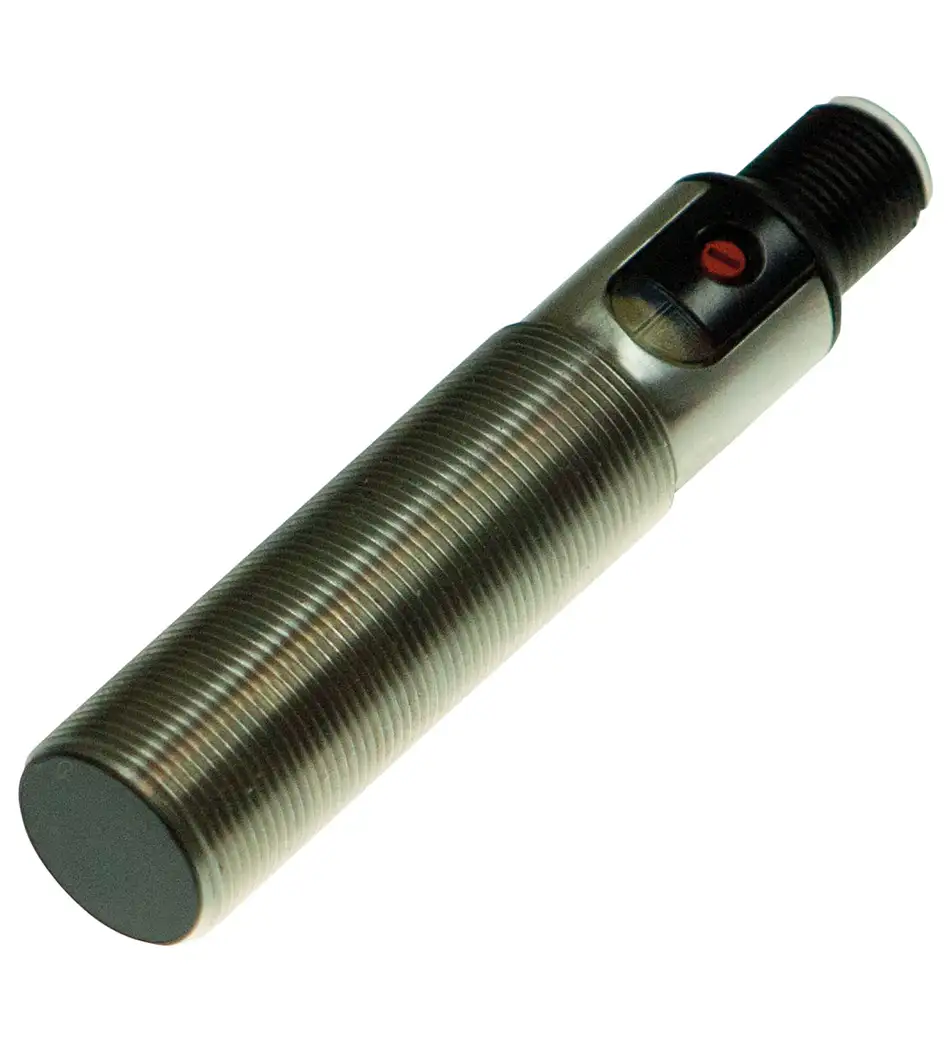

CBB8-18GS75-E2-V1 Capacitive sensor

Buy CBB8-18GS75-E2-V1 Capacitive Sensor from Pepperl+Fuchs

Engineered for versatile industrial applications, the CBB8-18GS75-E2-V1 Capacitive Sensor from Pepperl+Fuchs offers an adjustable sensing range of 1 to 8 mm for flexible detection requirements. This CBB8-18GS75-E2-V1 Capacitive Sensor from Pepperl+Fuchs, capacitive proximity sensor, and industrial level detection sensor is ideal for monitoring liquids, bulk materials, and packaging processes. With a built-in potentiometer for sensitivity adjustment and reliable PNP output, it ensures precise and stable detection across automation systems.

Key Features

• Capacitive sensing for detection of liquids and solid materials
• Adjustable sensing distance from 1 mm to 8 mm
• Flush mounting design for flexible installation
• Built-in potentiometer for sensitivity adjustment
• PNP output with normally open (NO) function
• Durable stainless steel housing for industrial use

Typical Applications

• Level detection of liquids and bulk materials
• Packaging and filling systems
• Plastic and glass detection
• Food and beverage processing
• Chemical and pharmaceutical industries

Technical Specifications

• Product Name: CBB8-18GS75-E2-V1 Capacitive Sensor
• Manufacturer: Pepperl+Fuchs
• Sensor Type: Capacitive proximity sensor
• Sensing Range: 1 – 8 mm
• Output Type: PNP, Normally Open (NO), 3-wire
• Operating Voltage: 10 – 30 V DC
• Switching Frequency: Up to 100 Hz
• Protection Rating: IP67
• Operating Temperature: -25°C to +85°C
• Housing: M18 cylindrical, stainless steel

📩 Contact us for pricing, availability, and delivery details.
